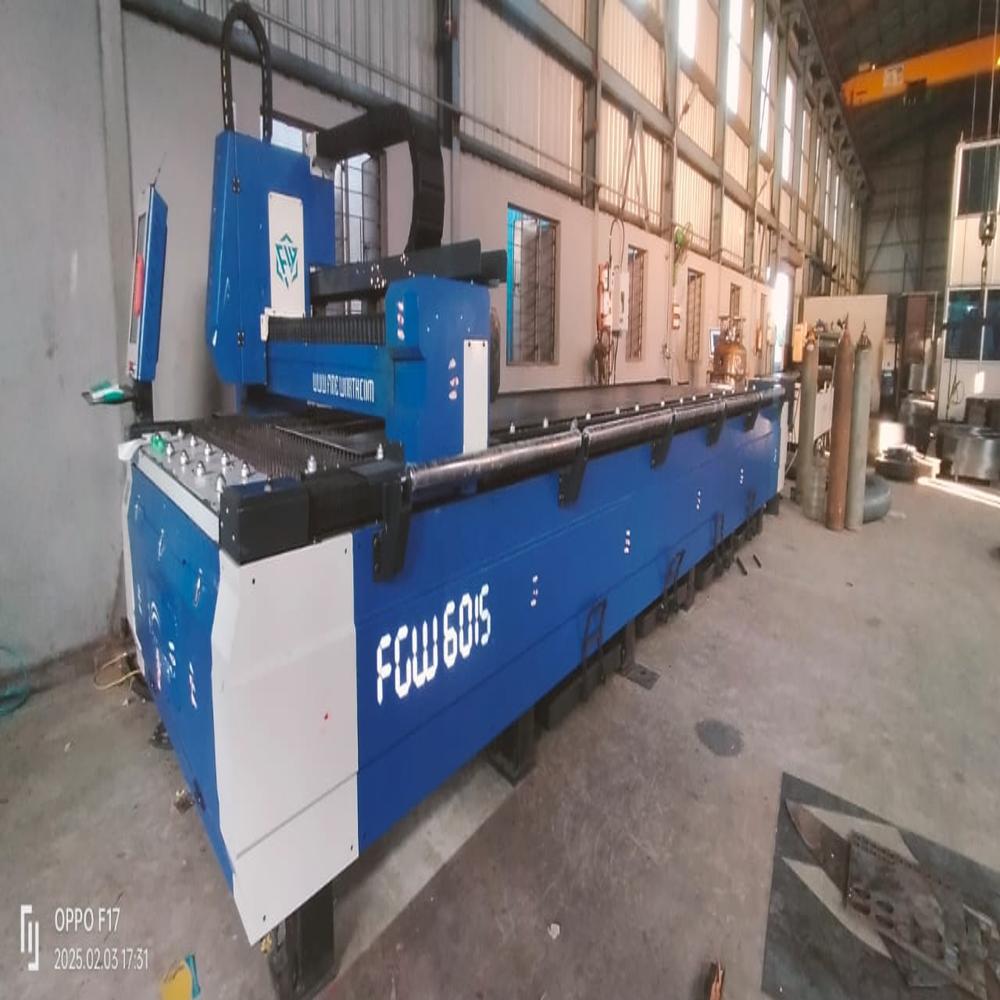

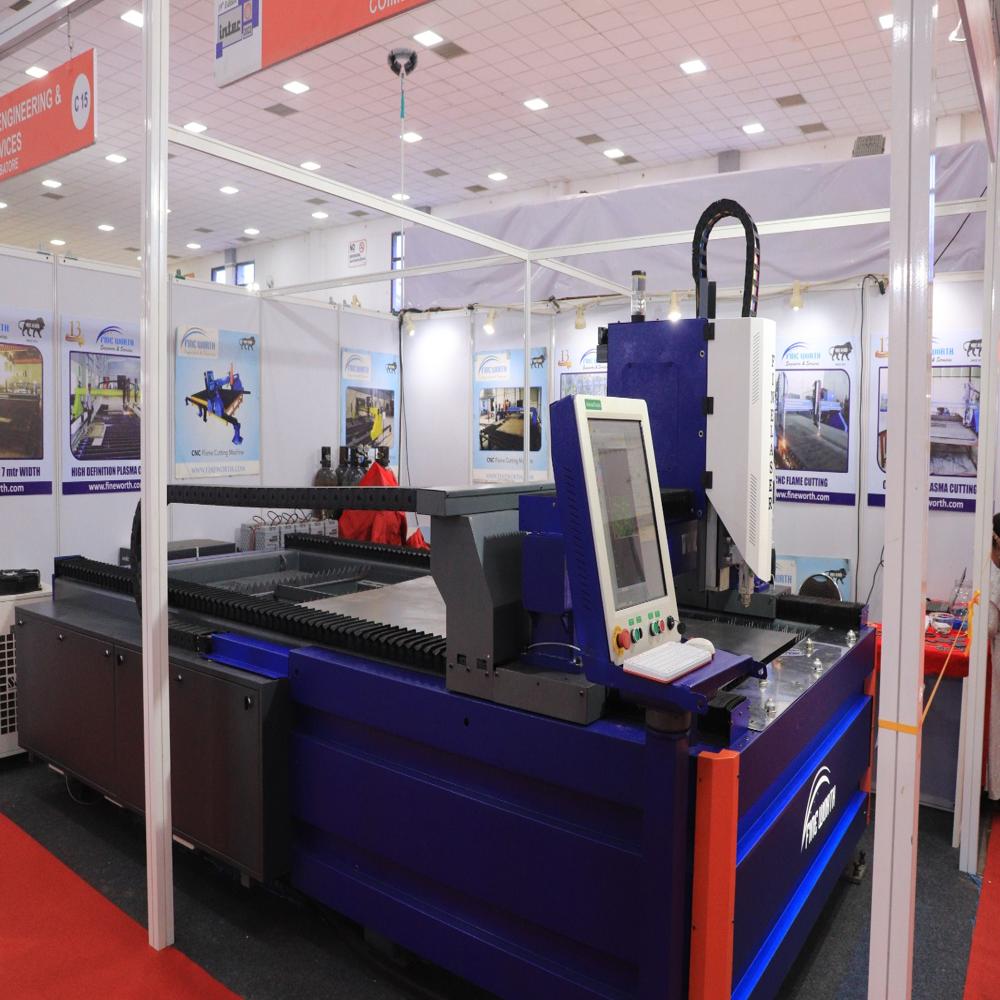

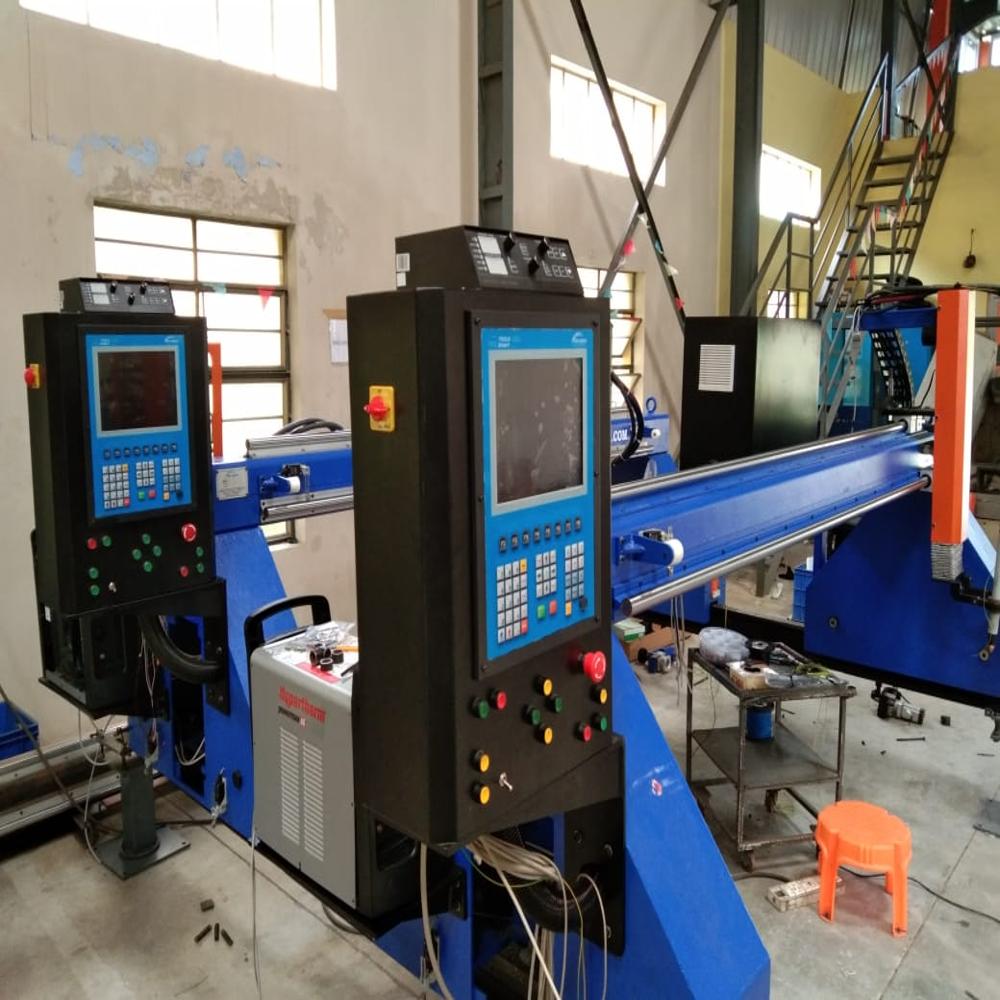

CNC PLASMA CUTTING MACHINES

Product Description

Overview of CNC Plasma Cutting Machines

CNC plasma cutting machines are automated industrial tools designed to precisely cut electrically conductive materials, such as steel, aluminum, brass, and copper, using a high-velocity jet of ionized gas known as plasma. The "CNC" stands for Computer Numerical Control, which means the machine is directed by computer software to follow programmed paths, enabling complex shapes and high accuracy without manual intervention. These machines revolutionized metal fabrication by combining the raw power of plasma cutting with the precision of digital control, making them essential in industries like manufacturing, automotive, aerospace, and construction.

How CNC Plasma Cutting Machines Work

The process begins with creating a digital design using Computer-Aided Design (CAD) software, which is then converted into machine-readable instructions via Computer-Aided Manufacturing (CAM) software. This code guides the machine's movements along X, Y, and sometimes Z axes.

Key steps include:

1. Gas Ionization: A power supply converts AC voltage to DC (typically 200-400V) and sends an electric arc through a nozzle filled with compressed gas (e.g., air, nitrogen, oxygen, or argon). This ionizes the gas, creating plasmathe fourth state of matterat temperatures up to 40,000F.
2. Plasma Generation: The plasma forms a conductive channel that transfers energy to the workpiece, melting the metal instantly. A secondary "assist gas" blows away the molten material, creating a clean cut.
3. Torch Movement: The CNC controller moves the plasma torch along the programmed path at speeds up to 500 inches per minute, depending on material thickness and type. Mechanized torches (straight-barreled for automation) ensure consistent arc stability.
4. Cooling and Control: Integrated cooling systems prevent overheating, while sensors monitor arc voltage and position for real-time adjustments.

Plasma cutting types include:

• High-Frequency Contact: Budget-friendly but prone to interference; less common in CNC setups.
• Pilot Arc: Uses a low-current spark inside the torch for reliable starts on rusty or painted surfaces.

No warmup time is needed, and cuts can penetrate up to 6 inches of steel on advanced models.
