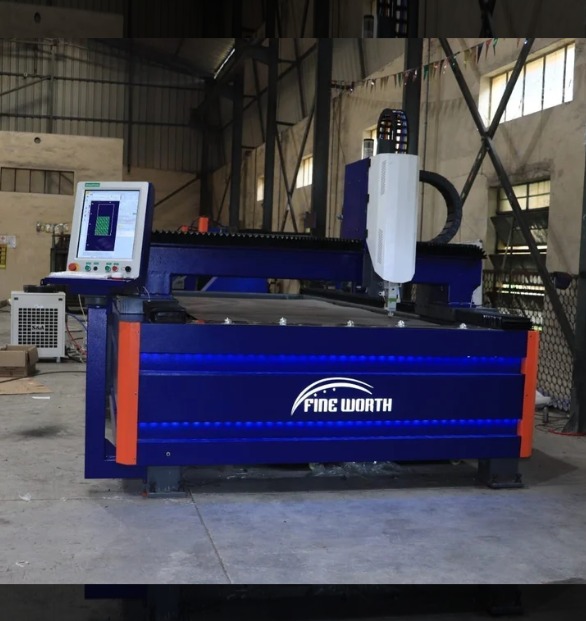

Fiber Laser Cutting Machine 18mm

Name: Fiber Laser Cutting Machine 18mm
Brand: FINE WORTH ENGINEERS & SERVICES
Price: 2500000.0 INR
Availability: InStock

2500000.0 INR/Unit

Get a Price/Quote

Product Details:

Working Area 1500mm x 3000mm
Power 1000W/1500W/2000W/3000W (optional)
Phase Three Phase
Usage & Applications Sheet metal processing, kitchenware, automobile parts, electrical cabinets, signage
Technology Fiber Laser Technology
Product Type Laser Cutting Machine
Laser Type Fiber Laser
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Fiber Laser Cutting Machine 18mm Price And Quantity

Price 2500000.0 INR/Unit
Minimum Order Quantity 1 Unit

Table Type Exchange Platform (optional)
Compatible Operating Systems Windows 7/8/10
Assist Gas Oxygen, Nitrogen, Air
Laser Wavelength 1064nm
Drive System Dual Drive Servo Motor
Power Supply Included
Repositioning Accuracy 0.02mm
Control Interface Touch Screen Panel
Positioning Accuracy 0.03mm
Focusing Method Auto Focus
Operating Temperature 5C-40C
Lens Protection YES, Automatic protection system
Max Acceleration 1.2G
Operating Humidity 5%-85%

Fiber Laser Cutting Machine 18mm Product Specifications

Product Type Laser Cutting Machine
Power 1000W/1500W/2000W/3000W (optional)
Working Area 1500mm x 3000mm
CNC Or Not Yes
Computerized Yes
Control Software CypCut/FSCUT
Cutting Thickness Up to 18mm (mild steel)
Weight (kg) 4000 kg
Voltage 380V/50Hz (customizable)
Color White/Blue/Grey (customizable)
Capacity High production efficiency
Dimension (L*W*H) 4600mm x 2300mm x 1700mm
Laser Type Fiber Laser
Usage & Applications Sheet metal processing, kitchenware, automobile parts, electrical cabinets, signage
Control System NC System
Cutting Speed 40-80 m/min (depends on material)
Cooling Mode Water Cooling
Material Carbon Steel, Stainless Steel, Aluminum, Brass, Copper
Phase Three Phase
Feature High Precision, Smooth Edge, Energy Saving
Cutting Area 1500mm x 3000mm
Technology Fiber Laser Technology
Automatic Grade Automatic
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Table Type Exchange Platform (optional)
Compatible Operating Systems Windows 7/8/10
Assist Gas Oxygen, Nitrogen, Air
Laser Wavelength 1064nm
Drive System Dual Drive Servo Motor
Power Supply Included
Repositioning Accuracy 0.02mm
Control Interface Touch Screen Panel
Positioning Accuracy 0.03mm
Focusing Method Auto Focus
Operating Temperature 5C-40C
Lens Protection YES, Automatic protection system
Max Acceleration 1.2G
Operating Humidity 5%-85%

Product Description

Capitalise on the Top-tier performance of the Fiber Laser Cutting Machine 18mm, engineered to deliver unprecedented accuracy and sublime cutting results. With a reduced margin of error-positioning accuracy of 0.03mm and repositioning accuracy of 0.02mm-this machine sets an enviable standard in high-efficiency sheet metal fabrication. Packed with energy-saving technology, automatic grade operation, and a robust dual-drive servo system, it integrates a touch screen for intuitive controls and advanced protection features for operators. Its flexible power options, multiple gas compatibility, and support for various graphic formats enable unmatched adaptability across applications from kitchenware to automotive parts. Enjoy high production capacity and smooth, exquisite edges every time.

Unrivalled Advantage and Diverse Applications

The Fiber Laser Cutting Machine 18mm is built for high-precision cutting, ensuring smooth edges and enviable output across diverse industries. Its top features and robust construction make it ideal for applications including sheet metal fabrication, kitchenware production, automobile components, electrical cabinet manufacturing, and signage creation. Suitable for both small workshops and large-scale factories, this machine maximises efficiency and meets high-demand performance requirements, making it an indispensable asset at any industrial site.

Consistent Supply and Global Delivery Reach

Our supply ability ensures reliable, on-time shipped goods with secure packaging and swift dispatching to clients nationwide and overseas. Serving the main domestic market across India and major export markets worldwide, we guarantee your Fiber Laser Cutting Machine 18mm arrives in prime condition, ready for setup and use. With established logistics and dedicated support, businesses can capitalise on uninterrupted production and seamless integration, benefiting from consistent, high-quality equipment delivery.

FAQ's of Fiber Laser Cutting Machine 18mm:

Q: How does the Fiber Laser Cutting Machine 18mm achieve such high precision levels?

A: The machine utilises advanced dual-drive servo motors and an auto-focus system, achieving a positioning accuracy of 0.03mm and repositioning accuracy of 0.02mm, resulting in sublime, high-precision cuts.

Q: What types of materials and thicknesses can this machine cut?

A: It capably handles materials like carbon steel, stainless steel, aluminum, brass, and copper, cutting mild steel up to 18mm thick with consistently smooth edges.

Q: Where can the Fiber Laser Cutting Machine 18mm be installed and used?

A: This machine is suitable for production floors, fabrication plants, and industrial workshops engaged in sheet metal processing, kitchenware, automobile parts, electrical cabinets, and signage manufacturing.

Q: What advantages does the automatic protection system provide?

A: The automatic protection system ensures operator safety and machine longevity by minimizing risks during operation, supported by lens protection and water cooling features.

Q: How are goods shipped and what packaging do you use?

A: Machines are shipped in secure, reinforced packaging to prevent damage during transit, ensuring safe and intact arrival to both domestic and export destinations.

Q: What is the process for integrating the machine with existing control systems?

A: The Fiber Laser Cutting Machine 18mm includes a touch screen NC system compatible with Windows 7/8/10 and popular design formats such as AI, DWG, and DXF, allowing seamless integration into current workflow.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'CNC Fiber Laser Cutting Machine' category

Fiber Laser Cutting Machinery Price : 2500000.0 INR/Unit Minimum Order Quantity : 1 Control System : Other, CNC Usage & Applications : Industrial Sheet Metal Cutting, Automotive, Electrical Cabinets, Metal Fabrication, Advertising, Hardware Products Cooling Mode : Water Cooling Phase : Three Phase Automatic Grade : Automatic Computerized : Yes CNC Or Not : Other, Yes Cutting Speed : 060 m/min (Material dependent) Material : Other, Stainless Steel, Mild Steel, Aluminum, Brass, Copper, Galvanized Sheet, and more Feature : Other, High Precision, Stable Performance, Low Maintenance, Energy Efficient Cutting Area : 1500 x 3000 mm Technology : Fiber Laser Graphic Format Supported : Other, AI, BMP, DST, DWG, DXF, DXP, LAS, PLT Product Type : Laser Cutting Machine Power : 1500W/2000W/3000W/4000W/6000W Working Area : 1500 x 3000 mm Cutting Thickness : 0.5 mm to 22 mm (Depending on Material & Power) Control Software : CypCut, FSCUT, or Equivalent Weight (kg) : 2300 3500 kg (Model dependent) Voltage : 380V / 50Hz (Customizable) Color : Other, Standard Grey / Customizable Capacity : Max. 1500W, 2000W, 3000W, 4000W, 6000W Options Dimension (L*W*H) : 4600 x 2450 x 1700 mm Laser Type : Fiber Laser

Send Inquiry

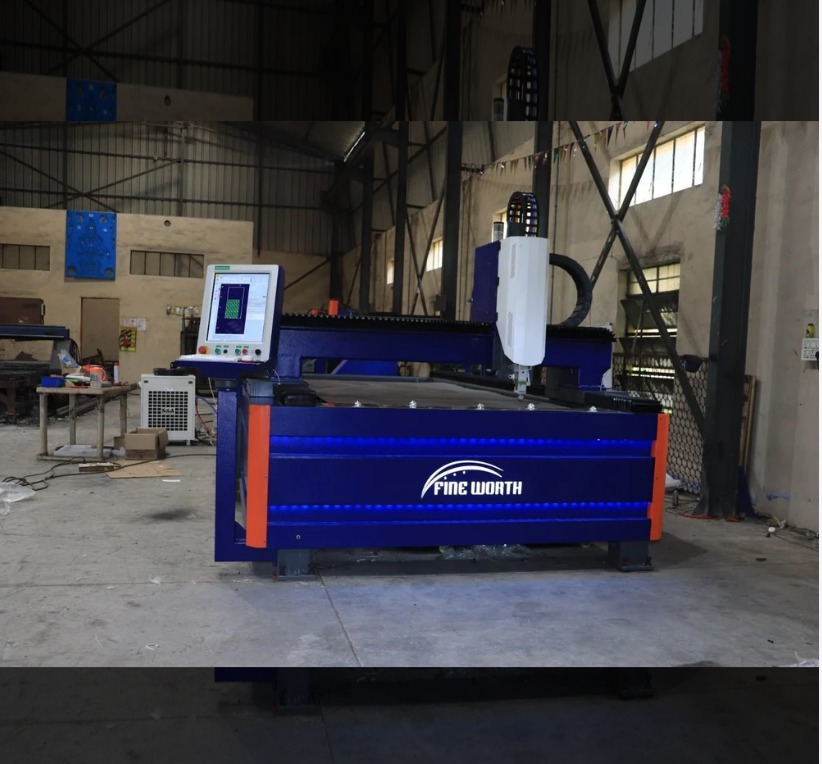

Industrial Fiber Laser Cutting Machine 15mm Price : 2100000.0 INR/Unit Minimum Order Quantity : 1 Control System : Other, CNC Usage & Applications : Sheet metal cutting for automotive, kitchenware, cabinets, hardware, electrical, and industrial fabrication Cooling Mode : Water Cooling Phase : Three Phase Automatic Grade : Automatic Computerized : Yes CNC Or Not : Other, Yes Cutting Speed : 035 m/min (depend on material and thickness) Material : Other, Carbon Steel, Stainless Steel, Aluminum, Copper, Galvanized Sheet Feature : Other, High precision, smooth edge cutting, low maintenance, energy saving Cutting Area : 1500 x 3000 mm (customizable) Technology : Fiber Laser cutting technology Graphic Format Supported : Other, AI, BMP, DST, DWG, DXF, DXP, LAS, PLT Product Type : Laser Cutting Machine Power : 1000W / 1500W / 2000W / 3000W (optional) Working Area : 1500 x 3000 mm Cutting Thickness : Up to 15mm (Mild Steel) Control Software : CypCut / FSCut / Other compatible software Weight (kg) : 3500 kg (approx.) Voltage : 380V / 50Hz / 60Hz (customizable) Color : Other, Standard white/blue (customizable) Capacity : High cutting efficiency Dimension (L*W*H) : 4600 x 2300 x 1900 mm Laser Type : Fiber Laser

Send Inquiry

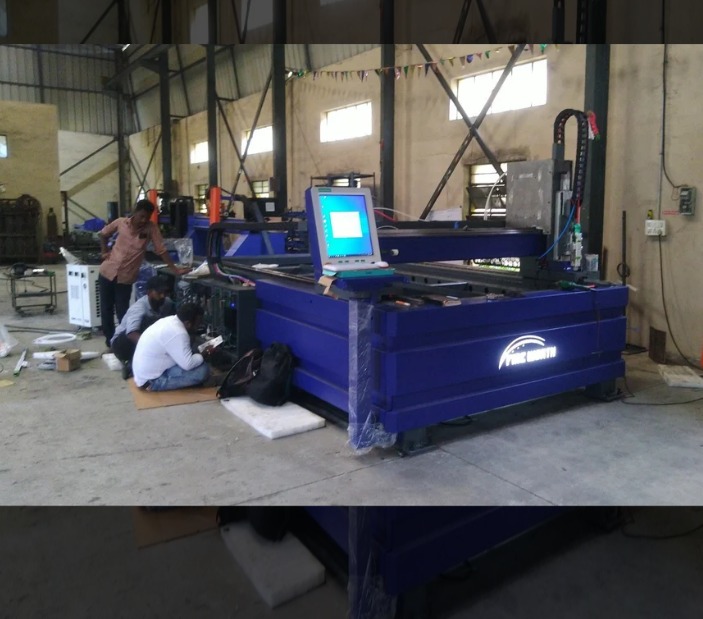

20mm Fiber Laser Cutting Machine Price : 2500000.0 INR/Unit Minimum Order Quantity : 1 Control System : Other, CNC Control System Usage & Applications : Metal Plate and Sheet Cutting for Machinery, Automobile, Electrical Cabinet, Kitchenware, Hardware, etc. Cooling Mode : Water Cooling Phase : Three Phase Automatic Grade : Automatic Computerized : Yes CNC Or Not : Other, Yes Cutting Speed : 060 m/min Material : Other, Mild Steel, Stainless Steel, Aluminum, Brass, Copper Feature : Other, High Precision, Low Maintenance, Fast Processing Cutting Area : 1500mm x 3000mm (Customizable) Technology : Fiber Laser Cutting Graphic Format Supported : Other, AI, DXF, BMP, PLT, DST, DSB, DWG, LAS, DXP Product Type : Fiber Laser Cutting Machine Power : 1000W / 2000W / 3000W / 6000W (Selectable) Working Area : 1500mm x 3000mm Cutting Thickness : Up to 20mm (Mild Steel) Control Software : CypCut / FSCUT / BCS100 Weight (kg) : 3500 kg Voltage : 380V 10%, 50/60Hz Color : Other, White & Blue (Standard) Capacity : 1000W to 6000W options Dimension (L*W*H) : 4600mm x 2200mm x 1800mm Laser Type : Fiber Laser

Send Inquiry

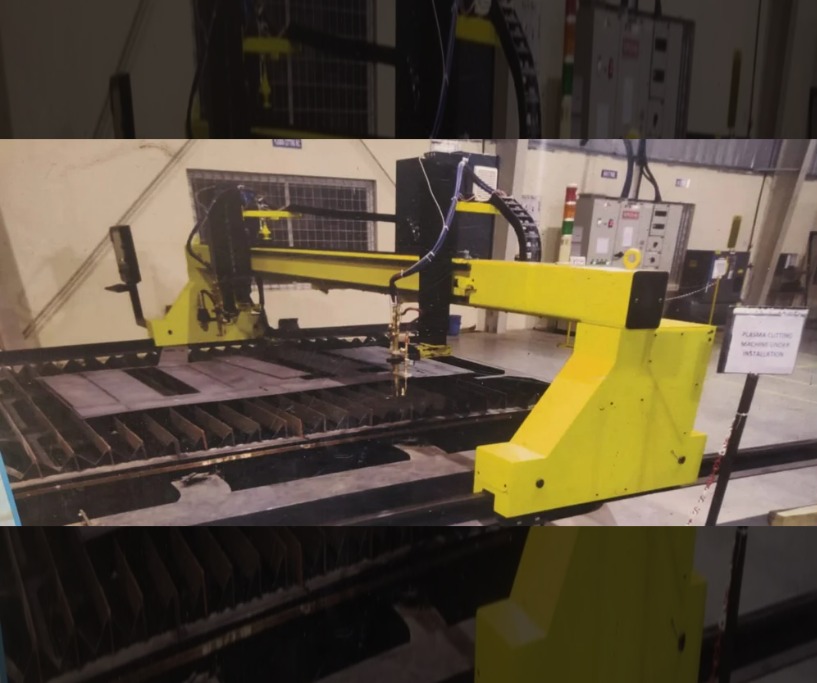

Industrial Laser Cutting Machine 8MM Price : 1700000.0 INR/Unit Minimum Order Quantity : 1 Control System : Other, CNC Control Usage & Applications : Sheet Metal Fabrication, Industrial Manufacturing, Metal Art, Equipment Production Cooling Mode : Water Cooling Phase : 3 Phase Automatic Grade : Automatic Computerized : Yes CNC Or Not : Other, Yes Cutting Speed : 040 m/min (depending on material and thickness) Material : Other, Mild Steel, Stainless Steel, Aluminum, Copper Feature : Other, Precise Cutting, High Efficiency, Low Maintenance Cutting Area : 1500mm x 3000mm (varies by model) Technology : Fiber Laser Graphic Format Supported : Other, AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Product Type : Industrial Laser Cutting Machine Power : 1000W/1500W/2000W/3000W (as per model) Working Area : 1500mm x 3000mm Cutting Thickness : Up to 8mm (Mild Steel) Control Software : CypCut / FSCUT Software Weight (kg) : Approx. 25003200 kg Voltage : 380V Color : Other, Blue/White Capacity : High Volume Production Dimension (L*W*H) : 4600 x 2300 x 1800 mm Laser Type : Fiber Laser
